🎯 Web Caching

Caching stores information that is requested by many clients in memory and serves this information as the results to client requests. While the information is still valid, it can be served potentially millions of times without the cost of re-creation.

Introduction

One of the reasons that websites are so highly responsive is that the internet is littered with web caches. Web caches store a copy of a given resource—for example, a web page or an image—for a defined time period. The caches intercept client requests and, if they have a requested resource cached locally, they return the copy rather than forwarding the request to the target service. Hence, many requests can be satisfied without placing a burden on the service. Also, as the caches are physically closer to the client, the requests will have lower latencies.

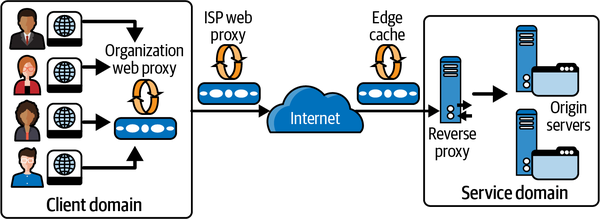

Multiple levels of caches exist, starting with the client’s web browser cache and local organization-based caches. ISPs will also implement general web proxy caches, and reverse proxy caches can be deployed within the application services execution domain. Web browser caches are also known as private caches (for a single user). Organizational and ISP proxy caches are shared caches that support requests from multiple users. Edge caches, also known as content delivery networks (CDNs), live at various strategic geographical locations globally, so that they cache frequently accessed data close to clients.

Types of web caches:

• Browser cache (private cache): Stores resources locally for a single user.
• Proxy cache (shared cache): Used by organizations or ISPs to serve multiple users.
• Reverse proxy cache: Placed in front of servers to cache responses for many clients (e.g., Varnish, NGINX).
• CDN (edge cache): Globally distributed caches that bring content closer to users.

Caches typically store the results of HTTP GET requests only, and the cache key is the URI of the associated GET. When a client sends a GET request, it may be intercepted by one or more caches along the request path. Any cache with a fresh copy of the requested resource may respond to the request. If no cached content is found, the request is served by the service endpoint, which is also called the origin server in web technology parlance. Services can control what results are cached and for how long they are stored by using HTTP caching directives. Services set these directives in various HTTP response headers.

Cache-Control

The Cache-Control HTTP header can be used by client requests and service responses to specify how the caching should be utilized for the resources of interest. Possible values are:

• no-store: Specifies that a resource from a request/response should never be cached. This is typically used for sensitive data (e.g., banking information, personal data) that must always be retrieved from the origin server.
• no-cache: Specifies that a cached resource must be revalidated with an origin server before use. The cache can store the resource, but must check with the server before serving it.
• private: Specifies a resource can be cached only by a user-specific device such as a web browser. Shared caches (like proxies or CDNs) must not store it.
• public: Specifies a resource can be cached by any cache, including shared caches.
• max-age: Defines the maximum amount of time (in seconds) a cached copy of a resource is considered fresh. After expiration, a cache must refresh the resource by sending a request to the origin server.
• s-maxage: Like max-age, but applies only to shared caches (e.g., CDNs, proxies).
• must-revalidate: Once a resource becomes stale, caches must revalidate it with the origin server before serving it.
• proxy-revalidate: Like must-revalidate, but applies only to shared caches.
• immutable: Indicates that the resource will not be updated during its freshness lifetime, so the browser can use the cached version without revalidation.

Example:

Cache-Control: public, max-age=3600, must-revalidate

Expires and Last-Modified

The Expires and Last-Modified HTTP headers interact with the max-age directive to control how long cached data is retained. Caches have limited storage resources and hence must periodically evict items from memory to create space. To influence cache eviction, services can specify how long resources in the cache should remain valid, or fresh. When a request arrives for a fresh resource, the cache serves the locally stored results without contacting the origin server. Once any specified retention period for a cached resource expires, it becomes stale and becomes a candidate for eviction.

Freshness is calculated using a combination of header values. The Cache-Control: max-age=N header is the primary directive, and this value specifies the freshness period in seconds. If max-age is not specified, the Expires header is checked next. If this header exists, then it is used to calculate the freshness period. The Expires header specifies an explicit date and time after which the resource should be considered stale. For example:

Expires: Wed, 21 Oct 2015 07:28:00 GMT

As a last resort, the Last-Modified header can be used to calculate resource retention periods. This header is set by the origin server to specify when a resource was last updated, and uses the same format as the Expires header. A cache server can use Last-Modified to determine the freshness lifetime of a resource based on a heuristic calculation that the cache supports. The calculation uses the Date header, which specifies the time a response message was sent from an origin server. How long to reuse is up to the implementation, but the specification recommends about 10% of the time after storing, which means a resource retention period subsequently becomes equal to the value of the Date header minus the value of the Last-Modified header divided by 10.

ETag

HTTP provides another directive that can be used to control cache item freshness. This is known as an ETag. An ETag (entity tag) is a unique identifier assigned by the server to a specific version of a resource. When a client requests a resource, the server includes an ETag in the response header. When the client later requests the same resource, it can send the ETag value in the If-None-Match header to check if the resource has changed.

This is known as revalidation.

There are two possible responses to this request:

• If the ETag in the request matches the value associated with the resource in the service, the cached value is still valid. The origin server can therefore return a 304 (Not Modified) response. No response body is needed as the cached value is still current, thus saving bandwidth, especially for large resources. The response may also include new cache directives to update the freshness of the cached resource.
• If the resource has changed, the origin server responds with a 200 OK response code, a response body, and a new ETag representing the latest version of the resource.

Tip: ETags are especially useful for caching resources that change infrequently or are expensive to generate, such as images, large documents, or API responses.

Cache Invalidation and Purging

A critical aspect of caching is invalidation—ensuring that outdated or incorrect data is not served to users. There are several strategies:

• Time-based expiration: Use max-age, Expires, or similar headers to automatically expire cached content after a certain period.
• Manual purging: Administrators or applications can explicitly remove or refresh cached content (e.g., via CDN APIs).
• Revalidation: Use ETag or Last-Modified headers to check with the origin server if the cached resource is still valid.
• Cache busting: Change the resource URL (e.g., by adding a version or hash) to force clients to fetch a new version.

Pitfall: If cache invalidation is not handled properly, users may see stale or incorrect data. Always design your cache strategy with invalidation in mind.

Vary Header

The Vary header tells caches to store different versions of a resource based on the value of specified request headers. For example, if a server responds with Vary: Accept-Encoding, the cache will store separate versions for gzip, br, or identity encodings.

Vary: Accept-Encoding, User-Agent

This is important for content negotiation (e.g., language, encoding, device-specific content) to ensure the correct version is served to each client.

Practical Caching Strategies

• Static assets (JS, CSS, images): Use long max-age and immutable for versioned files. Use cache busting (e.g., file hashes) to force updates.
• API responses: Use short max-age or no-cache for dynamic data. Use ETag or Last-Modified for revalidation.
• HTML pages: Use conservative caching, as content may change frequently. Consider using stale-while-revalidate for improved perceived performance.
• Sensitive data: Always use no-store to prevent caching.

Summary

When used effectively, web caching can significantly reduce latencies and save network bandwidth. This is especially true for large items such as images and documents. Further, as web caches handle requests rather than application services, this reduces the request load on origin servers, creating additional capacity.

Key takeaways:

• Use Cache-Control headers to explicitly define caching behavior.
• Combine Expires, Last-Modified, and ETag for robust cache management.
• Always consider cache invalidation and purging strategies.
• Use the Vary header for content negotiation.
• Caching is a powerful tool, but must be used thoughtfully to avoid serving stale data.
